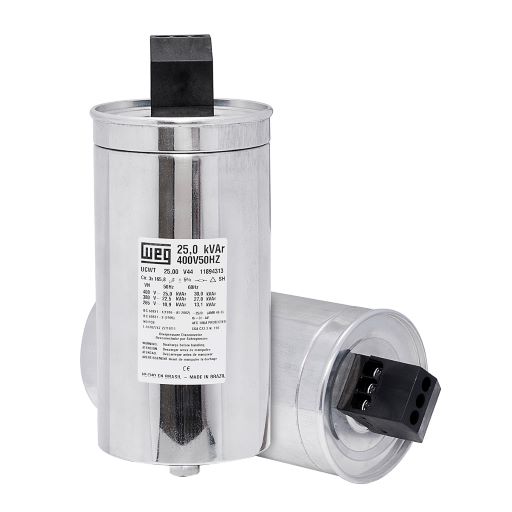

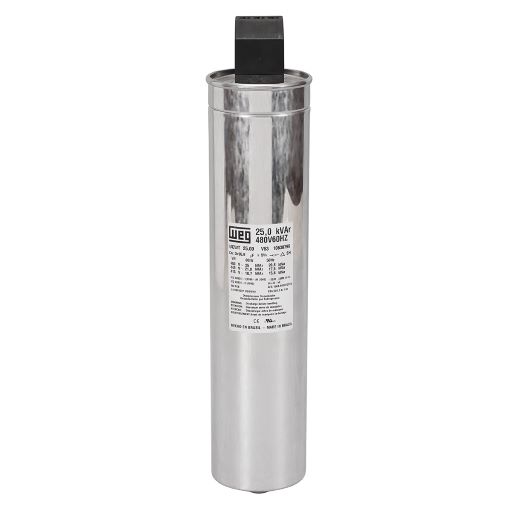

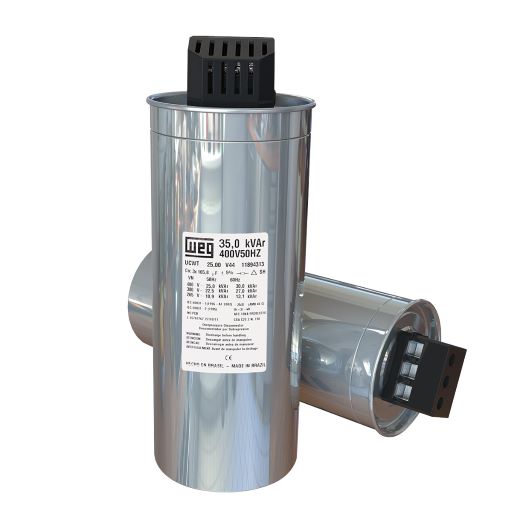

UCWT – Three–phase Capacitors

WEG power factor correction capacitors were designed using self–healing metallized polypropylene film, have security protection against internal over pressure and the dielectric losses are less than 0,4 W/kVAr.

Technical characteristics:

• self–healing, metalized polypropylene film with dry dielectric;
• safety interrupting device against internal overpressure;
• maximum allowed fault current 10,000 A;
• dielectric losses below 0,4 W/kVAr;
• built–in load resistors in the three–phase units, modules and banks;
• technical specification as per NBR IEC 60831-1/2 and UL810.
